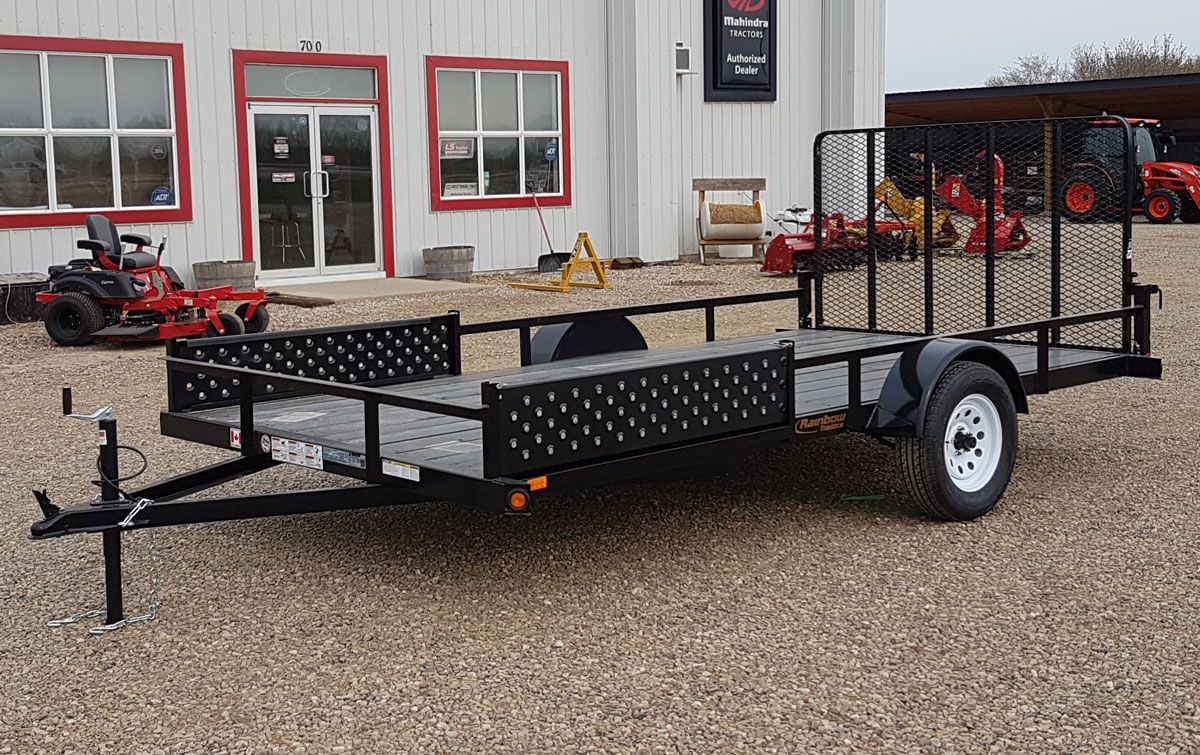

Rainbow Ramp Side 82"x12' Express Utility Trailer

Rainbow Ramp Side 82"x12' Express Utility Trailer

Rainbow Ramp Side 82"x12' Express Utility Trailer
Click to enlarge image(s)
Our Ramp Side Utility Trailer is perfect for hauling multiple ATVs and other light equipment with maximum efficiency. The Ramp Side option gives you the ability to load one unit from the front as well as an additional unit from the rear to maximize space and convenience.
82" X 12' Trailer, 3500 lb single Axle
See Also
SPECIFICATIONS
Deck Length 12'
Overall Length 15' 10"
Deck Width Between Fenders 82"
Overall Width 101"
Axle 3,500 lb.
GVWR 2,990 lbs.
Curb Weight 1,080 lbs.
Payload Capacity 2,209 lbs.
Hitch Weight (empty) 130 lbs.
Deck Height 21"
Hitch Height 16"
Ball Size 2"
Frame / Hitch 2"x2" Angle / 3" Channel
Floor 2" Painted Spruce
Jack 2,000 lb. Bolt-on
Tires / Wheels 6 Ply 205/75R15C / 5-4.5 Bolt
Ramp - Spring Assist 4' Lawn & Garden Ramp Gate
Brakes None (optional)
STANDARD FEATURES AVAILABLE OPTIONS
2" painted spruce floor LED Lights
Easy lube spring axles Aluminum wheels
Radial tires on 15" wheels Upgrade to braking axle
Metal preparation by sandblasting Upgrade to torflex idler axle
2-part epoxy primer Spare tire holder (weld on)
High quality black topcoat paint Spare tire & rim
Welded on fenders
Wiring enclosed in poly conduit
Side Rail Ramps
Spring Assisted Lawn & Garden Ramp
DOT Compliant safety chains
