Kioti CS2220 - 22hp 4wd

Kioti CS2220 - 22hp 4wd

Kioti CS2220 - 22hp 4wd
Click to enlarge image(s)

Introducting the all-new CS20 series! The versatile Sub Compact CS Series is easy to operate yet powerful enough to meet your demands, making it perfect for a wide variety of tasks.

.
More
Specifications
ENGINE
Cylinders 3 cyl. Daedong
Displacement cubic inch (cc) 61.5 cu. in. (1,007 cc)
Engine HP (kW) @ rpm 21.1 hp (15.7 kW) @ 3200
TRAVELING SPEEDS
Forward MPH (KPH) 10.31 (16.6)
Reverse MPH (KPH) 6.96 (11.2)
TRANSMISSION
Number of Speeds Infinite
Type HST - 2 ranges
FRONT WHEEL DRIVE
Type Mechanical
STEERING
Type Hydrostatic power
BRAKES
Type Wet multi disc
HYDRAULIC SYSTEM
3-Point Linkage Category 1, with check chains
Lift Capacity (@ 24") 700 lbs. (300)
Pump Output (gallons per minute) 6.5
Rear Auxiliary Remote Valves (optional) 1 spool
PTO
MID PTO RPM (engine rpm), (standard feature) 2,200@3,000
PTO HP (kW) 18.6 hp (13.9 kW)
PTO RPM (engine rpm) 540 @ 3,000
Type Live
OPERATING WEIGHT (total) 1,554 lbs.
DIMENSIONS WITH AG TIRES
Overall Length Inches 99.3 in.
Overall Width Inches 45.9 in.
Turning Radius Min. Feet 8.33'
TIRE SIZES
Industrial (Front / Rear) 18 x 8.5 - 10 / 26 x 12.00 - 12
LOADER SPECS (SL2420) Skidsteer Quick Attach Bucket
Bucket capacity 6.7 cu. ft.
Bucket width 48"
Lift Capacity to Full Height @ Pivot Pins 1062lbs.
Breakout Force @ Pivot Pins 1,329lbs.
Clearance with Attachment Dumped 54.8"
Maximum Lift Height 73.7"
Reach at Maximum Height 29.7"
Digging Depth Below Grade 5.1"
Cycle Times @ rpm 1,500 / 2,000 / 3,000 rpm
Dump Attachment (seconds) 5.5 / 2.9 / 1.5
Lower Boom (seconds) 4.1 / 2.1 / 1.1
Raise Boom (seconds) 6.7 / 3.5 / 1.8
Retract Attachment (seconds) 3.3 / 1.7 / 0.9
Rollback Angle 27°
Maximum Dump Angle 38°
Rated Flow (Tractor System) 4.9 gpm
Shipping Weight 573
Features Benefits
6 Year Powertrain Warranty Unlimited Hours! - Best in the industry!
More built in weight Redesigned Operator Station and All Steel Platform
Versatility A wide range of available implements to handle any task
Premium Diesel Engine Larger water-cooled Daedong diesel engine w/ low fuel consumption. More displacement = more torque
4wd 4WD is standard on the CS2210/CS2510 tractor and a single lever engages the 4WD
Power Steering w/ Tilt Steering Wheel Power steering is standard and minimizes the effort required to make tight and repetitive turns even with a full loader bucket
Industrial Tires The preferred all around tire. Less damaging to lawns as ag tires but better traction than turf.
Clear view, multifunctional instrument panel Full gauges lets you know how your tractor is running.
Comfortable, adjustable driver seat with water drain facility Reduces fatigue and soreness in extended operation. Flips forward for storage.
Drawbar & Full Size Cat. 1 three point hitch Not limited to smaller sized sub-compact implements for those real sized jobs.
Enclosed down-swept exhaust muffler Keeps engine noise and exhaust fumes away from the operator.
Foldable ROPS The standard fold-down roll bar makes it quick and easy to maneuver in low clearance areas

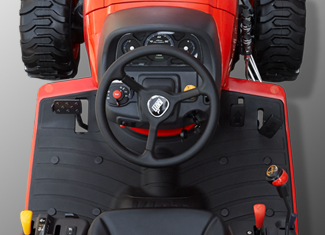

Ergonomic controls and pedals for operator comfort Smooth, easy operation with twin hydrostat pedals with standard cruise control.
12V / USB Power Outlets The standard 12 volt & USB power outlets are available for accessories
Hood opens completely for ease of access Wide opening hood - A full 60°
Spacious, mostly-flat operator platform with rubber mat Increased ease of mounting/dismounting and operation.
Headlights 55W lamps are the brightest in this tractor’s class
