Kioti CK3510HST - 34.9hp 4wd

Kioti CK3510HST - 34.9hp 4wd

Kioti CK3510HST - 34.9hp 4wd
Click to enlarge image(s)

CK 10 Series

The CK10 Series is fully featured, comfortable and ready for any job that demands a durable compact tractor.
Ranging from 24.5 hp to 40 hp, this series of high-performance compact tractors pack impressive power and smooth handling into one dependable workhorse.
More
Specifications
ENGINE
Cylinders 3 cyl. Daedong
Displacement cubic inch (cc) 111.4 cu. in. (1,826 cc)
Engine HP (kW) @ rpm 34.9 hp (26 kW) @ 2,600
TRAVELING SPEEDS
Forward MPH (KPH) 15.53 mph (25 km/h)
Reverse MPH (KPH) 15.83 mph (25.48 km/h)
TRANSMISSION
Number of Speeds Infinite
Type HST - 3 range
FRONT WHEEL DRIVE
Type Mechanical
STEERING
Type Hydrostatic power
BRAKES
Type Wet multi disc
HYDRAULIC SYSTEM
3-Point Linkage Category 1, with check chains
Lift Capacity (@ 24") 1,631 lbs. (740 kg)
Pump Output (gallons per minute) 11.7 total
Rear Auxiliary Remote Valves (optional) 2 spool
PTO
MID PTO RPM (engine rpm), (optional) 2,000
PTO HP (kW) 28 hp (21 kW)
PTO RPM (engine rpm) 540
Type Live
OPERATING WEIGHT (total) 2,734 lbs. (1,240 kg)
DIMENSIONS WITH AG TIRES
Overall Length Inches 120.9 in.
Overall Width Inches 55.1 in.
Ground Clearance 13.4 in.
Turning Radius Min. Feet 8.0'
TIRE SIZES
Industrial (Front / Rear) 27X8.5-15 / 15-19.5
LOADER SPECS (SL2410)
Bucket capacity NA
Bucket width 60" or 66"
Lift Capacity to Full Height @ Pivot Pins 1,835 lbs. (832 kg)
Breakout Force @ Pivot Pins 3,464 lbs. (1,571 kg)
Clearance with Attachment Dumped 79.1 in.
Maximum Lift Height 98.4 in.
Reach at Maximum Height 28.1 in.
Digging Depth Below Grade 5.3"
Cycle Times @ rpm 2,600 rpm
Dump Attachment (seconds) 3.2 seconds
Lower Boom (seconds) 2.3 seconds
Raise Boom (seconds) 3.9 seconds
Retract Attachment (seconds) 1.9 seconds
Rollback Angle 28º
Maximum Dump Angle 48º
Rated Flow (Tractor System) 7.1 gpm
Shipping Weight 840 lbs.
Features Benefits
6 Year Powertrain Warranty Unlimited Hours! - Best in the industry!
More built in weight Some of the heaviest tractors in their class. More weight = more productivity
Versatility A wide range of available implements to handle any task
Premium Diesel Engine Larger water-cooled Daedong diesel engine w/ low fuel consumption. More displacement = more torque
4wd 4WD is standard on the tractor and a single lever engages the 4WD
Hydrostatic Power Steering Power steering is standard and minimizes the effort required to make tight and repetitive turns even with a full loader bucket
Industrial Tires The preferred all around tire. Less damaging to lawns as ag tires but better traction than turf.
Clear view, multifunctional instrument panel Full gauges lets you know how your tractor is running.

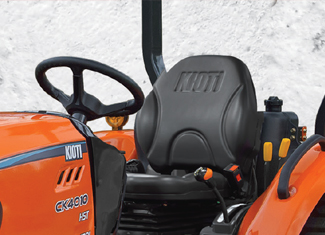

Deluxe Seat Fully adjustable suspension seat allows the operator to ride in comfort no matter what the job
Drawbar & Full Size Cat. 1 three point hitch Not limited to smaller sized sub-compact implements for those real sized jobs.
Enclosed down-swept exhaust muffler Keeps engine noise and exhaust fumes away from the operator.
Foldable ROPS The standard fold-down roll bar makes it quick and easy to maneuver in low clearance areas
Ergonomic controls and pedals for operator comfort Smooth, easy operation with twin hydrostat pedals.
Hood opens completely for ease of access Wide opening hood - A full 60°
Spacious, flat operator platform with rubber mat Increased ease of mounting/dismounting and operation.
