Mahindra Max 26 XL - 26hp 4wd

Mahindra Max 26 XL - 26hp 4wd

Mahindra Max 26 XL - 26hp 4wd
Click to enlarge image(s)
The best tractor on the planet in its class?
Max performance, features and value.
Unmatched in performance, compares to
competitors 32hp tractors in weight and lift capacity.
Built by Mitsubishi.
Low rate financing available
More Max 28
Specifications

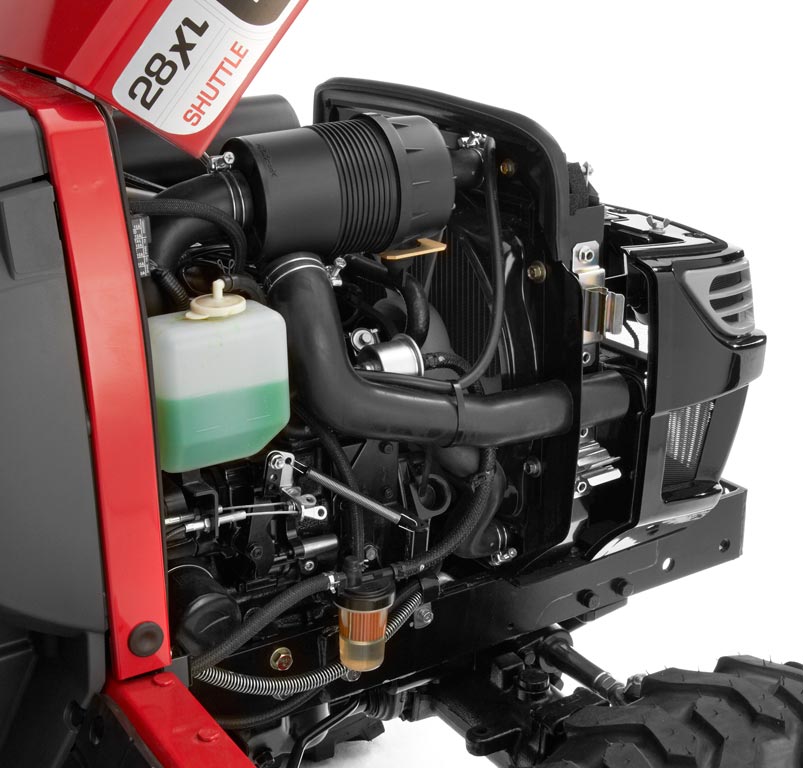

ENGINE
Compression Ratio 22:1
Cylinders 3 Mitsubishi Diesel
Displacement cubic inch (cc) 80.4 (1318)
Engine HP (kW) @ rpm 25.6 (19.1) @ 2600
Type Four stroke, indirect injection, water-cooled, diesel
ELECTRICAL
Alternator 12 volt, 50 amps
Battery Capacity 12 volt, 35 amp hours
CLUTCH
Type Single plate, dry
TRANSMISSION
Number of Speeds Infinite
Type HST - 2 ranges
FRONT WHEEL DRIVE
Type Mechanical
STEERING
Pump Output (gallons per minute) 2.7
Type Hydrostatic power
BRAKES
Type Wet disc
HYDRAULIC SYSTEM
3-Point Linkage Category 1, with check chains
Lift Capacity (@ 24") 2,205 lbs. (1,430)
Pump Output (gallons per minute) 5.8
Rear Auxiliary Remote Valves (optional) 1 spool
Type Open center, full-live hydraulic with position control
PTO
MID PTO RPM (engine rpm), (optional) 2000@2526
PTO HP (kW) 20 (14.9)
PTO RPM (engine rpm) 540 @ 2376
Type Live
OPERATING WEIGHT (total) 1,863 lbs.
DIMENSIONS WITH INDUSTRIAL TIRES
Overall Length Inches 109.3"
Overall Width Inches 54.3"
Turning Radius Min. Feet 6.6'
TIRE SIZES
Industrial (Front / Rear) 23x8.5-12 / 12x16.5
LOADER SPECS
Bucket capacity 7.0 cu.ft.
Bucket width 48"
Lift Capacity to Full Height @ Pivot Pins 1,402lbs.
Breakout Force @ Pivot Pins 2,690lbs.
Clearance with Attachment Dumped 67.3"
Maximum Lift Height 82.7"
Reach at Maximum Height 29"
Digging Depth Below Grade 2.6"
Cycle Times @ rpm 2,600 rpm
Dump Attachment (seconds) 2.2
Lower Boom (seconds) 2.4
Raise Boom (seconds) 3.3
Retract Attachment (seconds) 2.6
Rollback Angle 20°
Maximum Dump Angle 40°
Rated Flow (Tractor System) 5.8 gpm
Shipping Weight 627 lbs.
Features Benefits
7 Year Limited Warranty Best in the industry!
Max Lift Capacity Lift more, carry more, pull more and get more done
Max Versatility choose up to 15 implements to handle any task
Max Capacity Lift more, carry more, pull more and get more done
Max Maneuverability Best in class turning radius to get work done in tigh spaces
Max Engine Performance 28% lower RPM results in smooth, quiet operation and less fuel consumption
Max Ease-of-Use Easy turn "Xpress-Seat" for quick Backhoe operation, easy on and off with open platform
Max Stability Bigger tractor tires, better traction, stability and safety for all jobs
Dual Hydraulic Pumps Separate pump for steering creates effortless operation and increased lift capacity.
Industrial Tires The preferred all around tire. Less damaging to lawns as ag tires but better traction than turf.
Clear view, multifunctional instrument panel Full gauges lets you know how your tractor is running. No dummie lights.
Comfortable, adjustable driver seat with water drain facility Reduces fatigue and soreness in extended operation. Flips forward for storage.
Drawbar Useful for towing
Easy hook for top link retention Storage position for top link when not in use.
Enclosed down-swept exhaust muffler Keeps engine noise and exhaust fumes away from the operator.
Foldable ROPS 3 locking positions on the ROPS helps when overhead clearance is an issue.
Ergonomic controls and pedals for operator comfort Smooth, easy operation.
Front bumper / weight bracket Also used to mount grill guard.
Hitch lowering speed adjustment knob Increase or decrease the speed of 3 point hitch.
Hood opens completely for ease of access Side panels & front grill also pop on/off without tools.
Spacious, full-flat operator platform with rubber mat Increased ease of mounting/dismounting and operation.
Tilt steering column Increases ease of operation.
Cruise Control Lock your speed for long runs of tilling, mowing or snow clearing.
